Cord Dimmer Universal | LED 0-75W | White
€19,95€16,49 Incl. VATExcl. VAT
3 in stock
- 30 dagen zichttermijn *
- verzending vanaf €4,50. Gratis vanaf €75
- vóór 15:00 uur besteld = vandaag verzonden *
Size chart
✓ Smooth dimming
✓ Dimming range 0-100%
✓ Memory function
✓ Suitable for LED lamps 0-75W
✓ Suitable for 10-150W incandescent lamps, 230V halogen lamps and 12V halogen lamps
✓ Can be used at 120V with 65% of the wattage

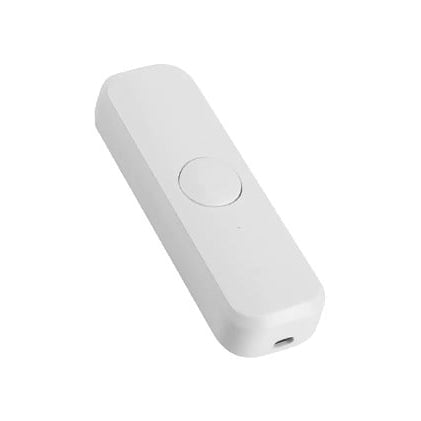

This white universal cord dimmer has a length of 100 mm, height of 20 mm and has a width of 32 mm. The cord dimmer features a push button that allows you to dim your dimmable LED (and Halogen) lamps.
LED minimum 0 watt, maximum 75 watt (220-240V)
Halogen minimum 10 watt, maximum 150 watt (220-240V)
Features fault indicator, overload, overheat and short-circuit protection.
Operation dimmer (Download the manuel and/or datasheet for this dimmer):
Setting minimum brightness
Insert the screwdriver into the MIN screw and turn it to the left. Keep the pushbutton pressed until the minimum brightness is reached. If the lamp starts flashing, turn the screwdriver to the right until the flashing stops.
Adjusting the dimming speed
Insert the screwdriver into the SPEED screw and turn it to the left or right until the desired dimming speed is reached.
Fault indicators
Green Normal operation.
Red Short circuit! Check the wiring and only switch the dimmer on again after 30 seconds.
Yellow Overload! Remove one or more lamps. Check that the lamps are not too heavy in wattage for this dimmer. Switch the dimmer back on as soon as the yellow LED goes out.
